12 Valve Cummins Fuel Shut Off Solenoid Wiring Diagram

These guidelines will probably be easy to comprehend and use. Cummins Marine Fuel Shutoff Solenoid Wiring Time for a class in Fuel Solenoids.


I Have A 1997 Dodge Ram Pickup With The Cummins Engine The Fuel Shut Off Valve Was Not Working Properly So We Thought

Cant recall off the top of my head the color coding but you want ONLY the hold coil to have constant keyed power.

12 valve cummins fuel shut off solenoid wiring diagram. Higginbotham Published February 14. 83 cummins fuel shutoff solenoid wiring diagram cranking the engine thru the magnetic switch that also operates the Bendix on the starter draws about 50 AMPS and I call it the suck in circuit. Diagram 12v Solenoid Valve Wiring Diagram Full Version Hd Quality Boat Trailer Disc Brake Free Backing Reverse Lock Out Solenoid Valve.

Pump should also have a manual shutdown lever on it thats beside the kubota usually uses a 3 wire stop solenoid when it needs to have the glad to know i dont have to have fuel shut off solenoid hooked up to run. Wiring The Fuel Shut Off Solenoid in On A 12v Swapped Cummins Truck - YouTube. Cut the Black wire off the plug as close to the plug as possible and install a GOOD 14 Heavy duty ring terminal on the end.

The wire Last edited by Chevycummins. Someone posted a wiring schematic from Dodge and it shows that the fuel heater circuit is 20 ga wire. Cummins Fuel Shutoff Valve 12 Volts Mins Fuel Solenoid Wiring 12v Solenoid Wiring 8 3 Cummins Fuel Signature And Isx Cm870 Fuel System Pdf Free Download Cummins Isx Fuel Solenoid Kit 4024808 Cummins Fuel Shut Off Solenoid Wiring Diagram Fuel Shutoff Cummins Engine Signature Isx Qsx15 Service Manual Download.

Wiring The Fuel Shut Off Solenoid in On A 12v Swapped Cummins Truck. If its a VE its just a single wire. Fuel Stop Solenoid Wiring Diagram.

I dont have an wiring schematic handy as im at work and sold my cummins long ago but a haynes manual will show you and some of the bigger libraries have them available for check out or just go autozone and open one up and look at the wiring diagrams. The shut off solenoid gets 12 volts from 2 places. Wiring up fuel shut off solenoid discussion in 5 9l 12 valve cummins.

But I would bet that the red is hot the entire time the engine is running and the white is only hot during the cranking stage of the game and. Ground hold and pull coils. Cummins Marine Fuel Shutoff Solenoid Wiring 101.

Furthermore Wiring Diagram provides you with enough time frame during which the projects are to become completed. It reveals the elements of the circuit as streamlined forms and the power and also signal connections in between the tools. We found the solenoid.

Fuel Shutoff Solenoid Mag Switch Starter Wiring What We Do Seaboard Marine delivers Guaranteed Better Than Factory Performance Parts Design and Engineering for Cummins. Cummins 12 Valve Shutoff Solenoid Bypass Quick Easy Fix Youtube Cummins Fuel Shut Off Solenoid Wiring Diagram By Anna R. Sep 06 Good evening here is a related wiring diagram.

Diesel stop solenoid 200tdi 300tdi rtc6702 fault diagnosis duration. The pull coil can only be energized momentairily usually energized with the starter as it draws high current and. Cummins Fuel Shut Off Solenoid Wiring Diagram 12v cummins fuel shutoff solenoid wiring diagram 59 cummins fuel shut off solenoid wiring diagram 83 cummins fuel shutoff solenoid wiring diagram Every electrical structure is composed of various different components.

Wiring Diagram comes with numerous easy to follow Wiring Diagram Directions. Smc Solenoid Valve Wiring Diagram Cummins Fuel Shut Off Solenoid 24vdc Airtac Solenoid Valve 4v210 08 Manual Wiring Diagram 4v210. If its a p-pump the solenoid has 3 wires.

Fuel shutoff solenoid wiring help P-Pump 24Valve. Our Cummins C engine has a fuel shut off activated by a solenoid which pulls-up with starter and holds-up with ignition. Time for a class in Fuel Solenoids 101 1 Grab your old solenoid and get a 12V battery some 12 AWG test leads Go to your bench.

Wiring diagram saab 9 3 2007 wiring library somewhere there is a solenoid that controls fuel flow. Cummins Marine Fuel Shutoff Solenoid Wiring Time for a class in Fuel Solenoids 1 Grab your old solenoid and get a 12V battery some 12 AWG test leads Go to your bench Cut the Black wire off the plug as close to the plug as possible and install a. Dodge diesel common rail diagnostcis 12v solenoid wiring diagram online 4 post carburetor for john with fuel shut off solenoid cummins wiring diagram cummins fuel shutoff solenoid 12v early 6b series engines seaboard marine.

Wiring up fuel shut off solenoid discussion in 5 9l 12 valve cummins. 5 9 Cummins Engine Fuel System Diagram Wiring Library Wrg 1887 12v Diesel Fuel Schematics Diagram 6bta 5 9 6cta 8 3 Mechanical Engine Wiring Diagrams 2 Gpm Reversible Gear Pump 12v For Motor Oil Diesel Fuel Or Water 12v Diesel Fuel Schematics Diagram Wiring Schematic Diagram Fuel Shutoff Solenoid Wiring 101 Seaboard Marine 12v Diagrams Diesel Bombers. Wiring Diagram Sheets Detail.

1 Grab your old solenoid and get a 12V battery some 12 AWG. Each component should be placed and linked to different parts in particular manner. Its intended to help all the typical user in developing a suitable method.

Cummins 12 Valve Shutoff Solenoid Bypass Quick Easy Fix Youtube Cummins Fuel Shut Off Solenoid Wiring Diagram. Cummins 12 Valve Shutoff Solenoid Bypass Quick Easy Fix Youtube Cummins Fuel Shut Off Solenoid Wiring Diagram. I dont have an wiring schematic handy as Im at work and sold my Cummins long ago but a haynes manual will show you and some of the bigger libraries have them available for check out or just go autozone and open one up and look at the wiring diagrams.

Red black and white.


I Have A 1997 Dodge Ram Pickup With The Cummins Engine The Fuel Shut Off Valve Was Not Working Properly So We Thought


Fuel Shut Off Solenoid Wiring Diagram

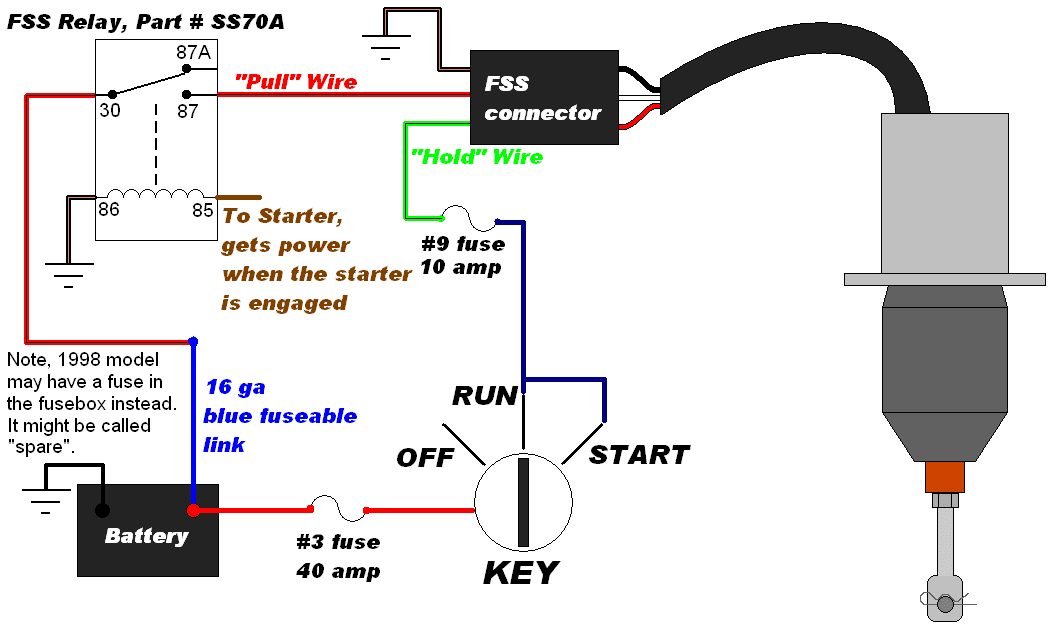

Larryb S Dodge Diesel 12 Valve 80 Amp Fuel Shutdown Solenoid Relay
